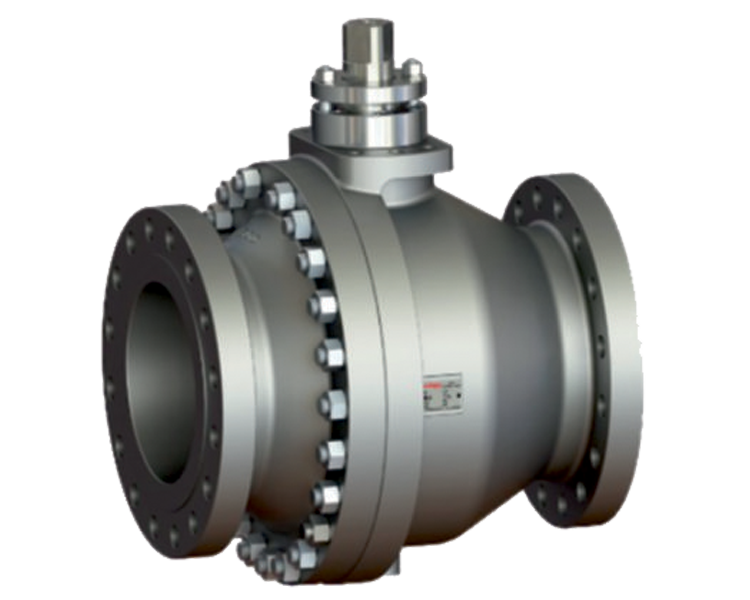

CAST STEEL BALL VALVE DESCRIPTION
Features: 1Piece / 3Piece / 2Piece Design, Full Bore / Reduce Bore, Design STD.: BS EN ISO 17292 (BS 5351), API6D, Testing STD.: BS EN 12266-1 (BS-6755- PART-1), API 598
Optional Features: Antistatic Device, Metal to Metal Seating, 3 Way (“L” Port & “T” Port), Top Entry, Trunnion Mounted.
On Request: Fire Safe Design As Per API-607, Jacketed Valves, Extended Spindle for Cryogenic Service, Locking Arrangement, Stellited / Hard Faces, NACE As Per MR-01-75, Gear, Electrical Actuator, Pneumatic Actuator.
Pressure Ratting/Class: 150#, 300#, 600#
End Connection: Flanged, Screwed BSP or NPT, Buttwed.
Size: 10MM to 400MM
Material of Construction (MOC): WCB / WCC, LCB / LCC, CF8, CF8M, CF3, CF3M.
Seat Material: PTFE (Teflon), CFT, GFT (RPTFE), PEEK, Devlon, etc.
Trim: SS304, SS316, SS304L, SS316L, Monel
Other Grades On Request: CF3, CF3M, CN7M, CF8C, Duplex- Gr. 4A, Super Duplex- Gr. 5A, Super Duplex- Gr. 6A, Nickel Alloy, Monel, Hastelloy, Inconel, SS904L etc.
